Ready to accelerate your Bioremediation projects?

The Micro-Oxymax respirometer delivers unmatched sensitivity and modular flexibility for precise, reliable data for bioremediation research.

Request a Demo

Thank you!
Your submission has been received!
Oops! Something went wrong while submitting the form.

What's Bioremediation?

What's Bioremediation?
Bioremediation uses beneficial microbes—bacteria, fungi, and even plants—to break down pollutants in soil, water, and air.

These organisms naturally “eat up” contaminants, turning them into harmless substances.

Thanks to advances in microbial genetics and bioengineering, this eco-friendly process is becoming more powerful than ever.

Bioremediation vs. Oil Spills

Bioremediation vs. Oil Spills
Oil spills threaten ecosystems, marine life, and human health. Traditional cleanup methods, like booms and dispersants, can be effective but often cause further damage. Bioremediation offers a safer solution: microbes break down oil into harmless byproducts like carbon dioxide and water. Sometimes they’re introduced directly; other times, existing microbes are boosted with nutrients to accelerate cleanup—even in major disasters.

Bioremediation in Action: A Historical Milestone

Bioremediation in Action: A Historical Milestone
In 1989, after the Exxon Valdez spill, the EPA turned to Columbus Instruments to improve microbial respiration measurement.

This led to the creation of the Micro-Oxymax Respirometer, patented for its Closed-Loop method.

Since then, it has supported research and cleanup efforts in landmark cases like Deepwater Horizon (2010), cementing its role in advancing bioremediation science.

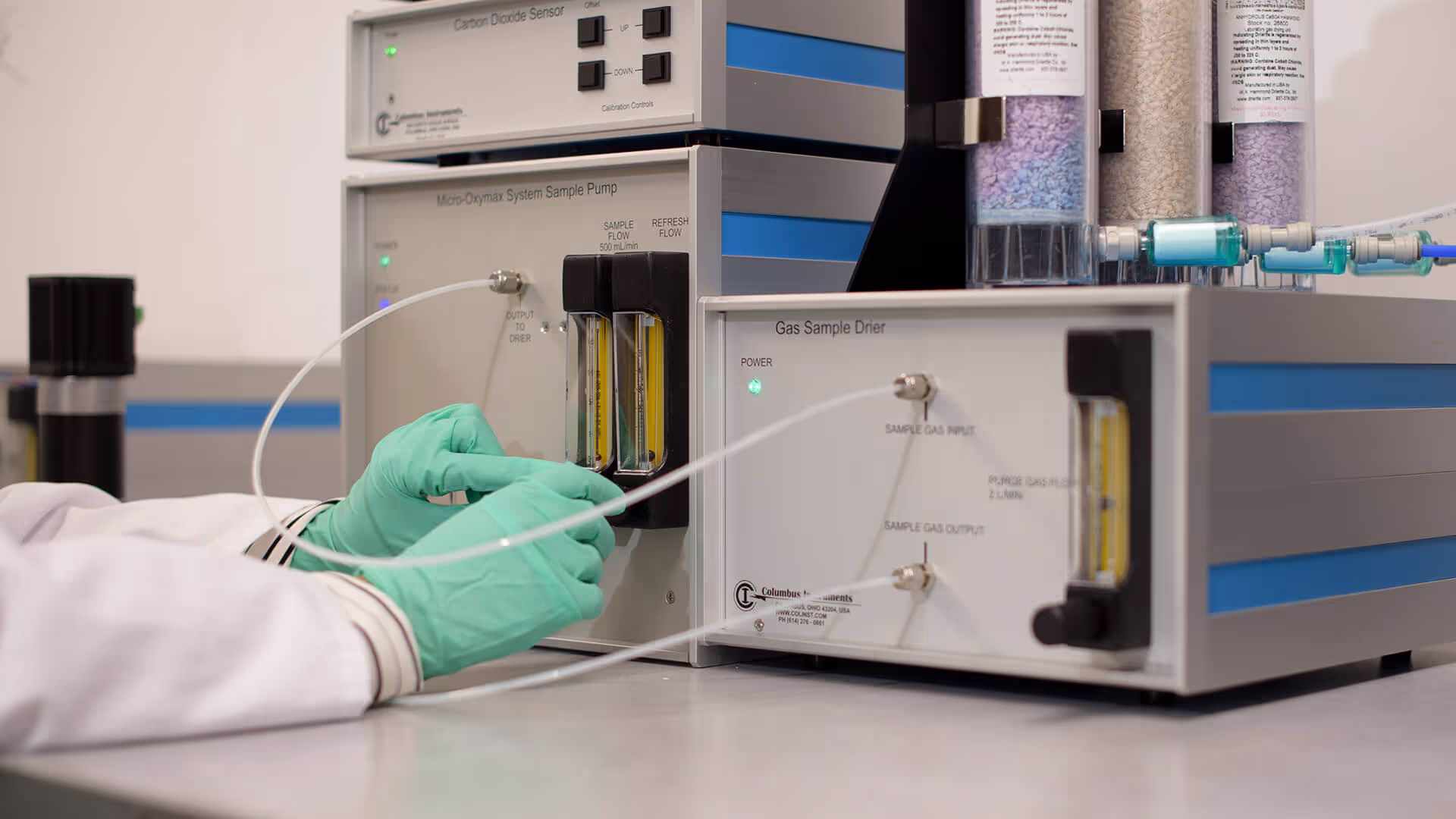

Why Choose the Micro-Oxymax Respirometer?
Trusted by scientists and environmental professionals worldwide, the Micro-Oxymax delivers unmatched sensitivity and modular flexibility.

It supports both aerobic and anaerobic studies, covering applications from biodegradability testing to large-scale bioremediation.

With intuitive software, expert support, and regulatory-ready data, it helps labs achieve reliable results while streamlining workflows.

Key Features

Ultra-sensitive detection
Measures CO2 production down to 0.2 µL/hour. This closed-loop sensitivity is ideal for marine tests.​
Standards Compliant
Fully compatible with key ISO and ASTM standards for both aerobic and anaerobic biodegradation studies—including ASTM D6691 (developed by using the Micro-Oxymax).​
Turnkey, Automated Operation
Low-maintenance, user-friendly system that runs with minimal intervention and requires very little lab staff to operate.
Modularity and Scalability
Expandable to 80 chambers, supporting multiple flask sizes and several gas sensors. Flexible setup with adjustable flow control for diverse experiments.
Excellent ROI
Significantly reduce costs compared to outsourcing sample testing—owning the system pays off quickly.​
Real-Time Efficiency
Immediate access to CO₂ evolution rates.
Ongoing Partnership
Columbus Instruments offers continued support ,training, and even sponsorship opportunities for scientists to present and publish their work (advertising, webinars, conferences, etc.).​
Scientific Advisory Board
Collaboration with leading researchers to gain inside industry knowledge and broaden networking opportunities.
RCIT Integration
Built-in Rapid Compost Indication Test reduces compost sample screening to just two weeks—accelerating results and increasing lab throughput and ROI.
Enhanced User Experience
Streamlined software interface and upgraded hardware design simplify operation and improve access to data and system controls.

Standards and Supported Gases

Suitable for these Standardized Aerobic and Anaerobic Tests:
  • ISO 14851
  • ISO 14852: Plastics in Aqueous Medium
  • ISO 14855
  • ISO 15985: Digestion
  • EN 13432: Plastics in Compost
  • ASTM D5209: Plastics in Sewage Sludge
  • ASTM D5210: Plastics in Sewage Sludge
  • ASTM D5271
  • ASTM D5511: Plastics under High Solids
  • ASTM D5338: Plastics in Controlled Compost
  • ASTM D5988: Plastics in Soil
  • ASTM D6691: Plastic Materials in Marine Environment
  • OECD 301B: Biodegradability of the material over a minimum of 28 days in a liquid environment
  • OECD 301C
  • OECD 301F
  • High Sensitivity: 2x10-7 liter of gas per hour
Supported Gases:
  • O2: 0-1%, 19-21%, 0-100%
  • CO2: 0-1%, 0-3%, 0-10%, 0-100%
  • CH4: 0-1%, 0-5%, 0-10%, 0-30%, 0-100%
  • CO: 0-1%, 0-10%H2: 0-2000ppm
  • H2S: 200ppm
  • NO2: 150ppm
  • N2O: Contact us for available ranges
  • Multiple Chamber Sensing: 1 to 80 Chambers
  • Fully automated operation
  • Maximum Head Space Volume: 50mL to 10L m), H2 (0-2000 and 0-10,000ppm)

Physical Dimensions: 

  • Sample Pump and Sensors: 13” x 11.5” x 12” (33 x 29 x 30 cm)
  • Controller: 17” x 17” x 7” (43 x 43 x 18 cm)  
  • CO2/CH4/H2S Sensor: 13” x 11.5” x 4” (33 x 29 x 19 cm)  
  • Paramagnetic O2 Sensor: 13” x 11.5” x 7.5” (33 x 29 x 19 cm) 
  • Expansion Interface: 13” x 11.5” x 7.5” (33 x 29 x 19 cm)  

Weight:

  • Sample Pump and Sensors: 20 lbs (9 kg)
  • Expansion Interface: 15 lbs (6.8 kg)
  • CO2/CH4/H2S Sensor: 6 lbs (2.7 kg)
  • Paramagnetic O2 Sensor: 6 lbs (2.7 kg)
  • Electrochemical O2 Sensor: 12 lbs (5.5 kg)

Frequently Asked Questions - FAQs

What is the Micro-Oxymax?

The Micro-Oxymax is an ultra-sensitive respirometer designed for precise measurement of gas exchange (O₂, CO₂, CH₄, etc.) in solid or liquid samples. It's modular and flexible. Use for both aerobic and anaerobic studies in bioremediation and biodegradation (home and industrial compost, landfill, marine water, soil, and wastewater). In addition to other respirometry application fields, such as biomethane potential (BMP), insect respiration, bioleaching, and fermentation.

How do I determine how many test chambers (flasks) I need?

Most ISO and ASTM standards call for running samples in triplicate (3 blanks + 3 controls + 3× number of samples). Some labs prefer quintuplicates for greater statistical accuracy (5 blanks + 5 controls + 5× number of samples). Our team can help you determine the size of your system based on your throughput requirements.

What gas sensors are available?

Available gas channels include CO₂, O₂, CH₄, CO, H₂, H₂S, NO, NO₂, and N₂O.

Is the system expandable?

Yes, the Micro-Oxymax is fully modular. You can add more chambers (up to 80) and additional gas sensors at any time.

What additional equipment do I need to run the Micro-Oxymax?

The system requires a PC (Windows-based) and calibration gas. We provide the exact gas specifications before installation so you can have everything ready.

How sensitive and accurate is the Micro-Oxymax?

The Micro-Oxymax offers CO₂ recovery detection as low as 0.03 mg per hour in closed-loop mode, with minimum gas exchange detection of ~0.2 µL per hour in specific configurations, and supports multiple programmable gas sensor options for flexible research applications.

Can the system measure under modified atmospheric conditions (e.g., altered gas compositions)?

Yes — there is a gas blending option so you can run your experiments under altered atmospheric conditions.

How is the Micro-Oxymax installed and set up?

One of our application engineers will come on-site to install the system, configure the software, and train your team to ensure you are fully prepared to begin testing.

What biodegradability standards does the Micro-Oxymax test?

Test for all major aerobic and anaerobic biodegradation standards, including industrial and home compost, landfill, marine water, soil, and wastewater (e.g., ISO 14855, ASTM D5338, ISO 22403, ASTM D6691, EN 13432).

Is there an economical option for compost-only studies?

Yes, the Micro-Oxymax-C is a streamlined, open-loop version explicitly designed for compost standards — a cost-effective choice if your work is focused only on compost biodegradation.

How often must I calibrate the instrument?

Perform a simple calibration before each test. The process takes about ten minutes and ensures maximum accuracy.

Can this system help with certification (e.g., TÜV, ASTM, ISO, EN standards)?

While third-party certification is still required, the Micro-Oxymax provides the confidence you need before submitting formulations. By monitoring CO₂ recovery, you can often determine pass or fail trends early in R&D and avoid wasting time on non-promising tests.

Is software included?

Yes, the system comes with software that enables real-time data collection and management. Capabilities include exportable data, graphical views during experiments, etc. You can download any future software updates when they become available.

What temperature range does the enclosure support?

The programmable enclosure operates from 4 °C to 60 °C, covering everything from refrigerated soil and marine studies to thermophilic compost testing.

Can the Micro-Oxymax predict biodegradability before the test ends?

Yes. By tracking CO₂ recovery rates, researchers can often predict material degradation outcomes well before the full test duration, enabling faster go/no-go decisions in product development.

Ready to accelerate your environmental research with precision and confidence?

Discover how the Micro-Oxymax Respirometer can power your next breakthrough in bioremediation.
